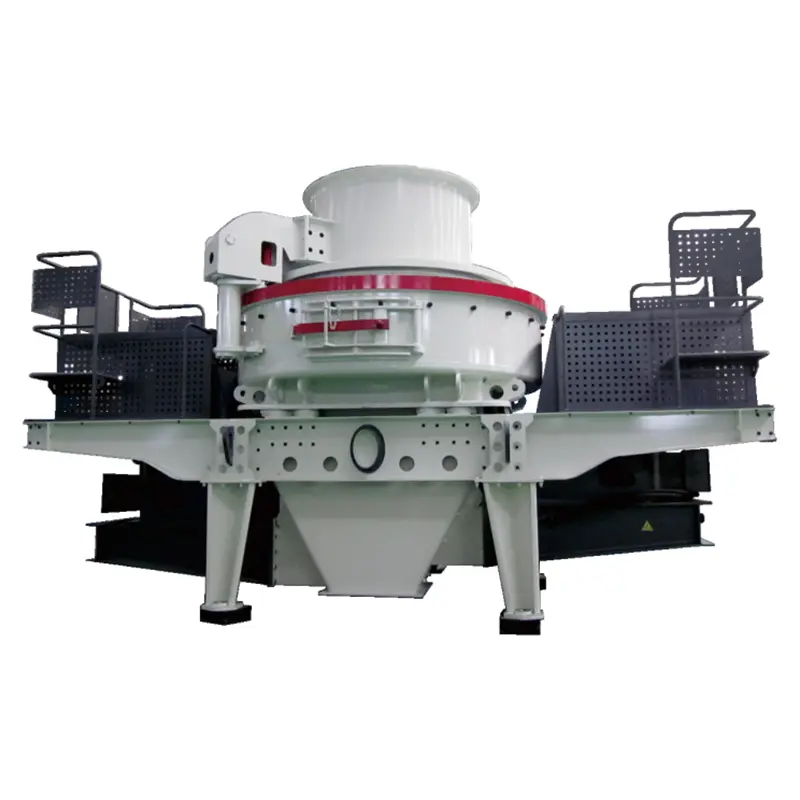

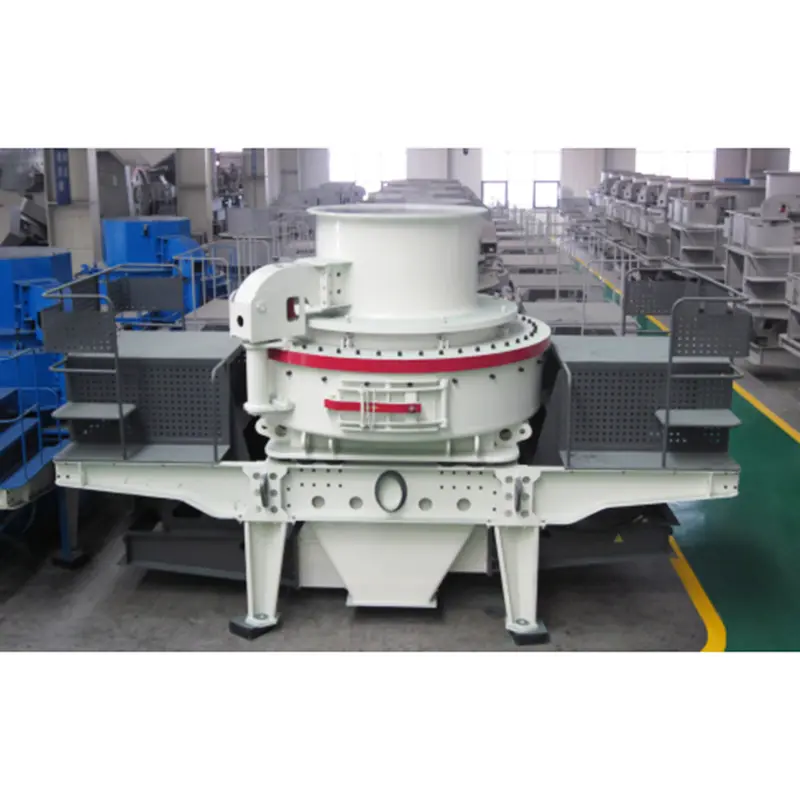

One of the key advantages of the VSI5X High-Efficiency Impact Crusher is its optimized feed opening and crushing chamber design. This improved structure ensures smoother material flow and more stable operating conditions, even under high-load and continuous production environments. By reducing turbulence and uneven impact inside the chamber, the design significantly lowers wear on key components, such as the rotor, impact blocks, and liners, effectively extending the overall service life of the equipment.
In addition, the VSI5X crusher is engineered for high production capacity combined with low energy consumption. Advanced rotor configuration and optimized power transmission improve energy utilization efficiency, allowing the crusher to deliver higher output while consuming less power. This makes it an economical choice for long-term operation and large-scale production.
The machine also features easy maintenance and user-friendly operation. Modular wear parts are simple to replace, reducing downtime and maintenance labor. Its stable performance and strong adaptability allow it to be seamlessly integrated into various crushing and sand-making production lines.
Thanks to its excellent crushing efficiency, superior sand-making performance, reduced wear, and long service life, the VSI5X High-Efficiency Impact Crusher is widely used in construction, mining, metallurgy, chemical industry, and infrastructure projects. It provides a reliable, energy-efficient, and high-performance solution for enterprises seeking high-quality artificial sand and aggregates in modern industrial production systems.
| Model | Capacity (t/h) | Max Feeding Size (mm) | Rotation Speed (r/min) | Double Motor Power (kw) | Overall Dimension (mm) | Weight (t) |
| VSI5X-7615 | 150-280 (Center and Side Feeding) | 35 (Soft Material) / 30 (Hard Material) | 1700-1900 | 110-150 | 4100 × 2330 × 2300 | 12.1 |
| VSI5X-8522 | 240-380 (Center and Side Feeding) | 40 (Soft Material) / 35 (Hard Material) | 1500-1700 | 180-220 | 4140 × 2500 × 2700 | 14.8 |
| VSI5X-9526 | 300-480 (Center and Side Feeding) | 45 (Soft Material) / 40 (Hard Material) | 1360-1510 | 264-320 | 4560 × 2600 × 2900 | 18.6 |
| VSI5X-1145 | 450-640 (Center and Side Feeding) | 50 (Soft Material) / 45 (Hard Material) | 1180-1310 | 400-440 | 5100 × 2790 × 3320 | 27.5 |
What is the VSI5X High-Efficiency Impact Crusher mainly used for?
The VSI5X High-Efficiency Impact Crusher is widely used in construction, mining, metallurgy, chemical industry, and infrastructure projects. It is specifically designed for producing high-quality artificial sand and aggregates, making it an ideal choice for modern industrial production systems that require consistent and high-performance output.
How does the VSI5X crusher reduce wear on key components?
The VSI5X features an optimized feed opening and crushing chamber design that reduces turbulence and uneven impact inside the chamber. This significantly lowers wear on critical components such as the rotor, impact blocks, and liners, effectively extending the overall service life of the equipment.
What is the maximum production capacity of the VSI5X series?
The VSI5X series offers a range of production capacities depending on the model. The largest model, VSI5X-1145, can achieve a capacity of 450–640 t/h with center and side feeding, making it suitable for large-scale production requirements.
Is the VSI5X crusher energy-efficient compared to conventional impact crushers?
Yes. The VSI5X is engineered for high production capacity combined with low energy consumption. Its advanced rotor configuration and optimized power transmission improve energy utilization efficiency, allowing the crusher to deliver higher output while consuming less power — making it an economical choice for long-term, large-scale operation.
How easy is it to maintain the VSI5X High-Efficiency Impact Crusher?
The VSI5X is designed with easy maintenance and user-friendly operation in mind. Its modular wear parts are simple to replace, which significantly reduces downtime and maintenance labor costs. The stable performance and strong adaptability of the machine also allow it to be seamlessly integrated into various crushing and sand-making production lines.
What feeding size can the VSI5X series handle?
The maximum feeding size varies by model and material hardness. For example, the VSI5X-7615 handles up to 35 mm for soft materials and 30 mm for hard materials, while the VSI5X-1145 handles up to 50 mm for soft materials and 45 mm for hard materials. Please refer to the technical specifications table above for full details on each model.
