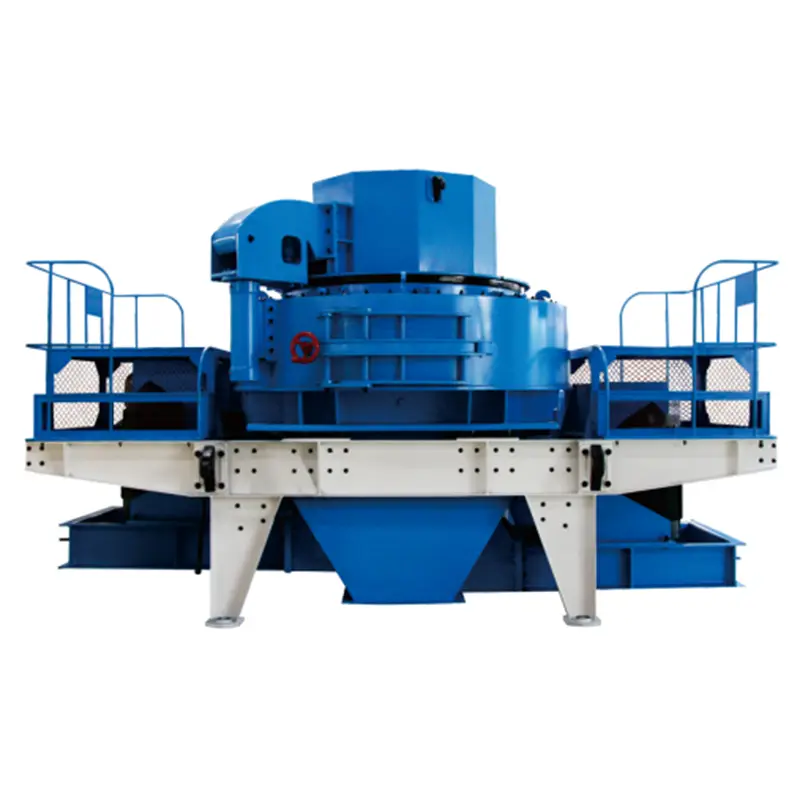

The VSI crusher is designed with a combined center feeding and side feeding system, which significantly expands its application range. Center feeding is ideal for stone shaping and sand-making operations, producing uniform, cubic-shaped particles. Side feeding, on the other hand, increases processing capacity and is suitable for larger output requirements. This flexible feeding mode allows the equipment to easily adapt to different materials, production capacities, and process configurations.
Another key feature is its high efficiency and low operating cost. Optimized rotor structure and wear-resistant materials reduce energy consumption while maintaining strong crushing force. Replaceable wear parts and a modular design simplify maintenance and reduce downtime, helping users achieve long-term stable operation and lower overall production costs.
Combined center & side feeding for versatile material handling and production configurations.
Optimized rotor and wear-resistant materials minimize energy use and reduce maintenance costs.
Suitable for construction, mining, metallurgy, highways, railways, bridges, and concrete plants.
Excellent shaping effect producing uniform, cubic-shaped, high-quality aggregate and sand.
Thanks to its excellent shaping effect and strong adaptability, the VSI Vertical Shaft Impact Crusher is widely used in construction, mining, metallurgy, chemical industry, and infrastructure projects such as highways, railways, bridges, and concrete mixing plants. It is particularly suitable for applications that require high-quality sand, precise particle size control, and superior aggregate shape.
With its high crushing efficiency, superior product quality, flexible feeding methods, and stable performance, the VSI Vertical Shaft Impact Crusher is an ideal choice for fine crushing and stone shaping operations. It provides a reliable, energy-efficient, and cost-effective solution for enterprises pursuing high-standard aggregate and sand production in modern industrial applications.
| Model | Capacity (t/h) | Max Feeding Size (mm) | Rotation Speed (rpm) | Double Motor Power (kw) | Overall Dimension (mm) | Weight (t) | Vibration Sensor | Hydraulic Oil Pump (kw) | Overall Dimension (mm) |
|---|---|---|---|---|---|---|---|---|---|
| VSI-7611 | 120-180 | Soft Material: 40 / Hard Material: 35 | 1700-1890 | 110 | 3700 × 2150 × 2100 | 10 | Yes | 2 × 0.25 | 820 × 520 × 1270 |
| VSI-8518 | 200-260 | Soft Material: 45 / Hard Material: 40 | 1520-1690 | 180 | 4140 × 2280 × 2425 | 12.5 | Yes | 2 × 0.25 | 820 × 520 × 1270 |
| VSI-9526 | 300-380 | Soft Material: 50 / Hard Material: 45 | 1360-1510 | 264 | 4560 × 2447 × 2778 | 16.8 | Yes | 2 × 0.25 | 820 × 520 × 1270 |
| VSI-1140 | 450-520 | Soft Material: 50 / Hard Material: 45 | 1180-1310 | 400 | 5000 × 2700 × 3300 | 25.6 | Yes | 2 × 0.25 | 820 × 520 × 1270 |
Center feeding is primarily used for stone shaping and sand-making, producing uniform cubic-shaped particles with high quality. Side feeding increases the overall processing capacity and is better suited for applications that require higher output volumes. The VSI crusher supports both modes, allowing operators to choose based on their specific production requirements.
The VSI crusher is suitable for a wide range of materials including limestone, granite, basalt, river pebbles, iron ore, and other hard or medium-hard rocks. It is widely applied in construction, mining, metallurgy, chemical industries, as well as infrastructure projects such as highways, railways, and bridges.
The VSI crusher features an optimized rotor structure and high-quality wear-resistant materials that reduce energy consumption while maintaining strong crushing force. Its modular design allows for easy replacement of wear parts, minimizing downtime and maintenance expenses. This combination ensures long-term stable operation and lower overall production costs.
For high-capacity requirements, the VSI-1140 is the most powerful model in the series, offering a capacity of 450–520 t/h with a double motor power of 400 kw. The VSI-9526 also provides strong output at 300–380 t/h with 264 kw motor power, making both models ideal for large-scale aggregate and sand production operations.
Yes, all VSI crusher models in this series — VSI-7611, VSI-8518, VSI-9526, and VSI-1140 — are equipped with a vibration sensor as standard. This feature enables real-time monitoring of the machine's operational status, helping to detect abnormalities early, prevent unexpected failures, and ensure continuous and safe production.
The VSI Vertical Shaft Impact Crusher is widely used across multiple industries including construction, mining, metallurgy, and chemical processing. It is particularly valued in infrastructure projects such as highway construction, railway projects, bridge building, and concrete mixing plants — wherever high-quality sand, precise particle size control, and superior aggregate shape are required.
