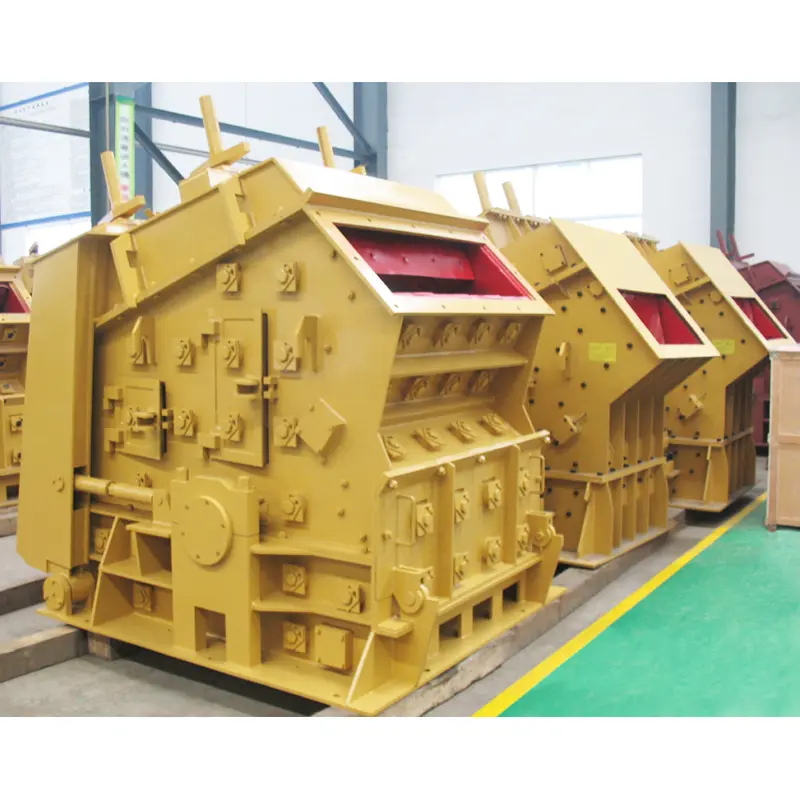

OEM PF Impact Crusher from China Suppliers & Factory for Mining, Quarry, and Recycling Applications Factories, Exporters

,

The PF Impact Crusher stands out as a top-tier crushing machine, expertly engineered for medium to fine crushing applications. As one of the leading China Suppliers of high-performance equipment, our factory utilizes premium materials and cutting-edge technology to ensure reliable and efficient crushing performance across diverse working conditions. This crusher is particularly adept at processing medium-hard materials, including stones, ores, limestone, concrete, and coal, making it a vital asset in contemporary crushing and aggregate production systems.

,

Our PF Impact Crusher features a scientifically optimized structural design, which facilitates a high crushing ratio. This capability allows materials to reach the desired particle size in fewer crushing stages, enhancing production efficiency and streamlining the overall production process while reducing overall equipment investment. The intricately designed crushing chamber promotes smooth material flow, minimizes potential blockages, and boosts overall throughput—effectively managing materials of varying hardness and moisture levels.

,

Product Description

Product Description

One of the key advantages of the PF Impact Crusher is its strong processing capacity combined with low energy consumption. The powerful rotor, equipped with wear-resistant blow bars, generates high-speed impact force to efficiently crush materials while maintaining excellent energy efficiency. This balance between output and power consumption significantly lowers operating costs and makes the equipment more economical for long-term operation.

The crusher is also known for its easy operation and convenient maintenance. Its modular structure allows for quick replacement of wear parts, reducing downtime and labor intensity. The simple adjustment mechanism enables operators to easily control the discharge particle size according to production requirements, ensuring consistent product quality for downstream processes.

With its high output, excellent stability, and long service life, the PF Impact Crusher is widely used in mining, metallurgy, construction materials, highway and railway construction, and other industrial fields. It is particularly well-suited for aggregate production lines and ore crushing operations where efficiency, reliability, and cost control are critical. Whether used in stationary plants or integrated into complete crushing lines, the PF Impact Crusher provides a dependable and efficient solution for medium and fine crushing needs.

Main Technical Specifications

Model

Rotor Size (mm)

Feed Opening Size (mm)

Max Feeding Size (mm)

Capacity (t/h)

Motor Power (kw)

Weight (t)

Overall Dimension (mm)

PF-1007

Φ1000 × 700

400 × 730

250

15-60

37-55

9.5

2400 × 1560 × 2660

PF-1010

Φ1000 × 1050

400 × 1080

300

50-90

55-75

13.2

2440 × 2250 × 2630

PF-1210

Φ1250 × 1050

400 × 1080

300

70-130

110-132

16.5

2700 × 2340 × 2870

PF-1214

Φ1250 × 1400

400 × 1430

300

90-180

132-160

19.5

2700 × 2695 × 2900

PF-1315

Φ1320 × 1500

860 × 1520

350

120-250

160-200

24.8

2860 × 2800 × 3050

Frequently Asked Questions

Q What is the PF Impact Crusher mainly used for?
The PF Impact Crusher is mainly used for medium and fine crushing of materials in industries such as mining, metallurgy, construction materials, highway and railway construction. It is particularly well-suited for aggregate production lines and ore crushing operations.
Q What are the key advantages of the PF Impact Crusher?
The PF Impact Crusher offers strong processing capacity with low energy consumption, easy operation and convenient maintenance, high output, excellent stability, and a long service life. Its modular structure also allows for quick replacement of wear parts, minimizing downtime.
Q How is the discharge particle size controlled in the PF Impact Crusher?
The PF Impact Crusher features a simple adjustment mechanism that allows operators to easily control the discharge particle size according to production requirements, ensuring consistent product quality for downstream processes.
Q What is the maximum feeding size for PF Impact Crusher models?
The maximum feeding size varies by model. For example, the PF-1007 accepts up to 250mm, the PF-1010 and PF-1210 and PF-1214 accept up to 300mm, while the larger PF-1315 model can handle materials up to 350mm in size.
Q Which PF Impact Crusher model offers the highest production capacity?
Among the listed models, the PF-1315 offers the highest production capacity, ranging from 120 to 250 t/h, making it ideal for large-scale crushing operations that demand high throughput and efficiency.
Q Can the PF Impact Crusher be integrated into a complete crushing production line?
Yes, the PF Impact Crusher is designed to be versatile. It can be used in stationary plants or seamlessly integrated into complete crushing lines, providing a dependable and efficient solution for various medium and fine crushing applications.
