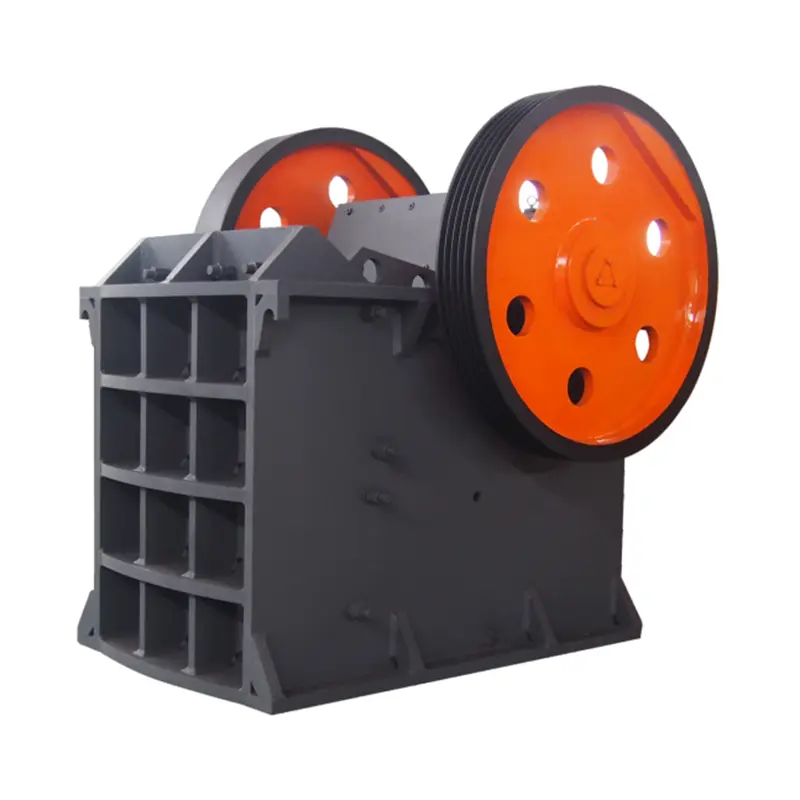

CE Certification PE Jaw Crusher for Stone and Ore - Quality Factory Suppliers in China for Quarry Applications Supplier, Exporters

,

The PE Jaw Crusher is a durable and reliable primary crushing solution, crafted from high-quality steel and produced using advanced manufacturing techniques to guarantee long-term performance and stability. This robust crusher is designed to withstand tough working environments, delivering exceptional crushing efficiency and consistent output, making it a vital asset for various industrial applications.

,

Ideal for the primary crushing of medium-hard materials, this jaw crusher effectively processes a variety of ores, rocks, limestone, granite, basalt, and coal. With its large feed opening, it can directly accommodate oversized raw materials, minimizing the need for pre-processing and significantly enhancing overall production efficiency. The high crushing ratio of the PE Jaw Crusher allows for substantial material size reduction in a single pass, ensuring a uniform particle size distribution that improves downstream processing performance. As a leading China supplier and factory of crushing machinery, we prioritize quality and performance in every unit we produce.

,

Product Description

Product Description

The machine is designed with a simple yet highly effective mechanical structure, consisting of a fixed jaw plate and a movable jaw plate that work together to crush materials through compressive force. This design not only improves crushing efficiency but also minimizes mechanical failure risks, ensuring stable operation even under continuous heavy loads. The optimized crushing chamber geometry enhances material flow, prevents clogging, and maximizes throughput.

Another key advantage of the PE Jaw Crusher is its high processing capacity combined with low operating costs. Wear-resistant components, such as jaw plates made from high-manganese steel or customized alloy materials, significantly extend service life and reduce maintenance frequency. Easy access to internal parts simplifies routine inspection and replacement, minimizing downtime and improving productivity.

⚙️ Simple Mechanical Structure
💰 Low Operating Costs
🔧 Wear-Resistant Components
🏭 Wide Industry Application
PE Jaw Crusher (2)
Thanks to its easy operation, reliable performance, and strong adaptability, the PE Jaw Crusher is widely used in mining, metallurgy, construction materials, infrastructure projects, and chemical industries. Whether for large-scale mining operations or aggregate production lines, this crusher provides a cost-effective and efficient solution for primary crushing needs, making it an ideal choice for modern industrial production systems.

Main Technical Specifications

Model Feed Opening Size (mm) Max Feeding Size (mm) Adjustable Range of Outlet (mm) Capacity (t/h) Motor Power (kw) Weight (t) Overall Dimension (mm)
PE250×400 250×400 200 20-50 5-20 15 2.8 1430×1310×1340
PE400×600 400×600 350 40-100 15-60 30-37 6.8 1700×1732×1653
PE500×750 500×750 425 50-150 40-110 45-55 11.2 2035×1982×1877
PE600×900 600×900 500 55-160 60-150 55-75 16.5 2290×2260×2370
PE750×1060 750×1060 630 80-150 110-250 90-110 29 2655×2320×3110
PE900×1200 900×1200 750 95-160 150-350 110-132 54.5 3789×2826×3870
PE1000×1200 1000×1200 850 105-185 150-450 132-160 56.5 3900×3150×3700
PE1200×1500 1200×1500 1000 150-300 400-800 220-250 99.6 4900×3150×3700
PEX150×250 150×250 125 10-40 1-3 5.5 0.95 896×745×935
PEX250×400 250×400 200 25-60 15-25 7.5 1.6 1205×748×1027
PEX250×750 250×750 210 25-60 16-25 7.5 3.6 1667×1436×1272
PEX250×1200 250×1200 210 25-60 20-60 11 6.8 1964×1550×1334
PEX300×1300 300×1300 250 20-90 30-105 55-75 12.1 2050×2270×1750

Frequently Asked Questions

1 What is the difference between PE and PEX jaw crushers?
PE jaw crushers are primarily used for primary (coarse) crushing of large-sized materials, featuring wider feed openings. PEX jaw crushers are designed for secondary (fine) crushing with narrower feed openings and are typically used to process smaller materials into finer outputs.
2 What materials can the PE Jaw Crusher process?
The PE Jaw Crusher is suitable for crushing a wide range of materials including granite, basalt, limestone, quartz, iron ore, copper ore, and various other hard and medium-hard rocks and ores. It is widely applied in mining, metallurgy, construction, infrastructure, and chemical industries.
3 How do I select the right PE Jaw Crusher model for my project?
Model selection depends on several key factors: the maximum feed size of your raw material, required output capacity (t/h), desired discharge size range, and available motor power. Refer to the technical specifications table above to match your project requirements with the appropriate model, or consult our technical team for a customized recommendation.
4 How long do the jaw plates typically last?
The jaw plates are manufactured from high-manganese steel or customized alloy materials, which provide excellent wear resistance. Service life varies depending on the hardness and abrasiveness of the processed material, but they are engineered to significantly extend replacement intervals and reduce overall maintenance costs compared to standard materials.
5 Is routine maintenance on the PE Jaw Crusher difficult?
No. The PE Jaw Crusher is designed for easy maintenance. Internal components are readily accessible, allowing for quick routine inspection, lubrication, and part replacement. This minimizes downtime during maintenance and helps keep production lines running efficiently.
6 Can the output size of the PE Jaw Crusher be adjusted?
Yes. The discharge opening (outlet) size is adjustable within the specified range for each model, as listed in the technical specifications table. This allows operators to control the final product size to meet different production requirements without replacing major components.
