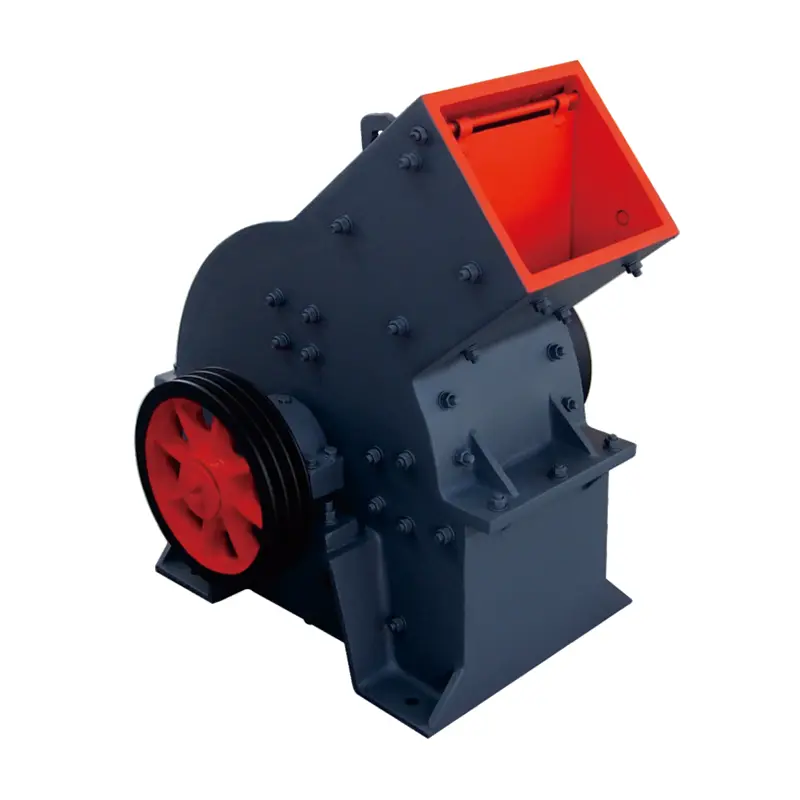

At the core of the machine is a high-speed rotor equipped with heavy-duty hammerheads. These hammers are cast from high-quality composite alloys or high-manganese steel to ensure wear resistance and impact strength. When material enters the crushing chamber, it is struck by the high-speed hammers, thrown against the impact plates, and crushed further between the hammer and the grate bars.
The PC Hammer Crusher offers excellent control over product size. The bottom of the machine features an adjustable grate plate; the gap between the grate bars determines the final discharge size. This allows operators to easily switch between producing coarse aggregate or fine material. Structurally, the casing is designed for easy access—the body can be opened quickly to inspect the rotor or replace worn hammers, ensuring maintenance is fast and downtime is minimized.
With its low energy consumption, sealed body structure to prevent dust pollution, and reliable performance, the PC Hammer Crusher remains the industry standard for efficient, low-cost crushing of brittle materials.
| Model | Max Feeding Size (mm) | Output Size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) |
|---|---|---|---|---|---|
| PC400 × 300 | 100 | <15 | 3-10 | 11 | 0.86 |
| PC600 × 400 | 120 | <15 | 8-15 | 22 | 1.55 |
| PC800 × 600 | 150 | <20 | 10-40 | 55 | 3.1 |
| PC1000 × 800 | 200 | <30 | 16-65 | 90 | 6.2 |
| PC1000 × 1000 | 300 | <40 | 30-90 | 110 | 8.8 |
| PC1200 × 1000 | 350 | <40 | 45-110 | 132 | 11.5 |
| PC1250 × 1250 | 350 | <40 | 65-140 | 185 | 17.9 |
| PC1400 × 1400 | 400 | <40 | 90-200 | 280 | 35.2 |
| PC1600 × 1600 | 400 | <40 | 150-300 | 480 | 41 |
The hammerheads are cast from high-quality composite alloys or high-manganese steel. This specific material composition ensures excellent wear resistance and impact strength during heavy-duty operations.
The output size is controlled via an adjustable grate plate located at the bottom of the machine. By adjusting the gap between the grate bars, operators can easily control the size of the final product to produce either coarse aggregate or fine material.
No, the machine is designed for simple and rapid maintenance. The casing body can be opened quickly, giving operators immediate access to inspect the rotor or replace worn hammerheads, which significantly reduces downtime.
Yes. The PC Hammer Crusher is built with a sealed body structure, which is highly effective at preventing dust escape and reducing environmental pollution during operation.
Depending on the specific model chosen, the production capacity ranges from 3 t/h for smaller models (like the PC400×300) up to 300 t/h for larger, industrial-grade models (like the PC1600×1600).
